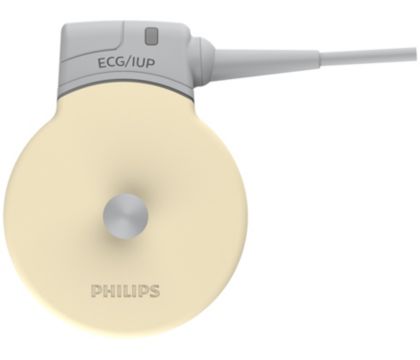

Cableless ECG/IUP Transducer

Philips Avalon

Find similar products

Avalon cableless ECG/IUP transducer with connector for maternal ECG, fetal ECG, or IUP measurement. For use with the Avalon CL base station 866074.

Contact & support
Features
Absorbs Damage

Absorbs Damage

Withstands a 1.5 m drop to concrete surface with possible cosmetic damage only.

Absorbs Damage

Withstands a 1.5 m drop to concrete surface with possible cosmetic damage only.

Absorbs Damage

Withstands a 1.5 m drop to concrete surface with possible cosmetic damage only.
  • Absorbs Damage
See all features
Absorbs Damage

Absorbs Damage

Withstands a 1.5 m drop to concrete surface with possible cosmetic damage only.

Absorbs Damage

Withstands a 1.5 m drop to concrete surface with possible cosmetic damage only.

Absorbs Damage

Withstands a 1.5 m drop to concrete surface with possible cosmetic damage only.

Specifications

Environmental
Environmental
Operating temperature
  • 0°C-40°C (32°F-104°F)
Operating humidity
  • <95% relative humidity @ 40°C (104°F)
Operating Altitude
  • -500-3000 m (-1640-9840 ft)
Charging temperature
  • 0°C-35°C (32°F-95°F)
Storage/transportation temperature
  • -20°C-60°C (-4°F-140°F)
Storage/transportation humidity
  • <90% relative humidity @ 60°C (140°F)
Storage/transportation altitude
  • -500-13100 m (-1640-43000 ft)
Product details
Product details
Product Dimensions
  • 76 mm/37 mm (3 in/1.5 in)
Physical
Physical
Weight
  • 0.2 kg/0.5 lb
Water ingress protection code
  • IP 68 (immersion up to 1 m water depth for 5 hours)
Shock resistance
  • Type CF
Transducer Identification
  • Optical Signal Element (Finder LED)
Environmental
Environmental
Operating temperature
  • 0°C-40°C (32°F-104°F)
Operating humidity
  • <95% relative humidity @ 40°C (104°F)
Product details
Product details
Product Dimensions
  • 76 mm/37 mm (3 in/1.5 in)
See all specifications
Environmental
Environmental
Operating temperature
  • 0°C-40°C (32°F-104°F)
Operating humidity
  • <95% relative humidity @ 40°C (104°F)
Operating Altitude
  • -500-3000 m (-1640-9840 ft)
Charging temperature
  • 0°C-35°C (32°F-95°F)
Storage/transportation temperature
  • -20°C-60°C (-4°F-140°F)
Storage/transportation humidity
  • <90% relative humidity @ 60°C (140°F)
Storage/transportation altitude
  • -500-13100 m (-1640-43000 ft)
Product details
Product details
Product Dimensions
  • 76 mm/37 mm (3 in/1.5 in)
Physical
Physical
Weight
  • 0.2 kg/0.5 lb
Water ingress protection code
  • IP 68 (immersion up to 1 m water depth for 5 hours)
Shock resistance
  • Type CF
Transducer Identification
  • Optical Signal Element (Finder LED)
